PRODUCT INFORMATION:
Model:
DNBE-2000
Unit:

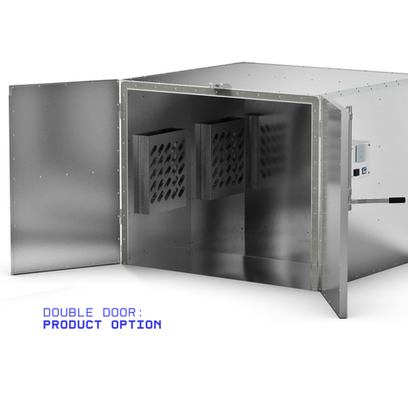

Batch Curing Oven
Warranty:
One year limited warranty
FEATURES:
- Corrosion-resistant steel coating
- Operating temperatures up to 500°F
- User-friendly, microprocessor-controlled interface
- Long-life mineral insulated metal sheathed heating elements
- Heating element cover plates
- Made in the USA!
SPECIFICATIONS:
Electrical Specifications:
208-240VAC
60A
Number of Heating Elements:
Four (4)
Weight:
650 lbs
Interior Dimensions:
64” Width x 61.5” Deep x 52.5” Height
Exterior Dimensions:
69” Width x 67” Deep x 55” Height
DESCRIPTION:
Our industrial composite curing ovens are available in a wide range of standard sizes, with custom sizes available upon request. Engineered for precision thermal control, these ovens are the ideal solution for composite material curing applications including carbon fiber, fiberglass, and other advanced laminates.
Designed for professionals in aerospace, automotive, marine, and industrial sectors, our composite curing ovens provide accurate, uniform temperature distribution and tight process control. Each unit is rated to 500°F (260°C) and undergoes rigorous calibration and testing before shipment to ensure fast, reliable installation and consistent curing results.
PRODUCT OVERVIEW
Product Information
Model:
DNBE-2000
Unit:
Batch Curing Oven
Warranty:
One year limited warranty
Specifications
Electrical Specifications:
208-240VAC
60A
Number of Heating Elements:
Four (4)
Weight:
650 lbs
Interior Dimensions:
64” Width x 61.5” Deep x 52.5” Height
Exterior Dimensions:
69” Width x 67” Deep x 55” Height
Features
- Corrosion-resistant steel coating
- Operating temperatures up to 500°F
- User-friendly, microprocessor-controlled interface
- Long-life mineral insulated metal sheathed heating elements
- Heating element cover plates
- Made in the USA!
Description
Our industrial composite curing ovens are available in a wide range of standard sizes, with custom sizes available upon request. Engineered for precision thermal control, these ovens are the ideal solution for composite material curing applications including carbon fiber, fiberglass, and other advanced laminates.
Designed for professionals in aerospace, automotive, marine, and industrial sectors, our composite curing ovens provide accurate, uniform temperature distribution and tight process control. Each unit is rated to 500°F (260°C) and undergoes rigorous calibration and testing before shipment to ensure fast, reliable installation and consistent curing results.
