Unit:
Standup Cerakote Curing Oven – Roller Cart System
Model:
BAE-0300
Warranty:
One year limited warranty
Updated Design with Improved Workflow Features:
Refined Layout: Streamlined design enhances functionality and overall performance.
Insulated Hybrid Floor with Fitted Roller Cart: Keeps the roller cart precisely centered within the curing chamber.
Upgraded Roller Cart: Includes a hanging rack top shelf and a removable middle shelf for added versatility.
Optimized Air Circulation: Hot air is drawn from the top, routed through internal ductwork, and evenly redistributed from the bottom.
Unobstructed Chamber Access: All ductwork, heating elements, and temperature sensors are built into the chamber walls, maximizing usable space.
Key Features:
Corrosion-resistant curing chamber
Durable, industrial-grade exterior finish
Energy-efficient operation
Wide operating temperature range: 000° to 500°F
Intuitive, microprocessor-controlled interface
Includes one (1) roller cart with removable shelf fixture system
High-temperature ceramic fiberglass door seal
Dual mineral-insulated, metal-sheathed heating elements for extended life
Protective cover plate for heating elements
Electrical Specifications:
Single Phase
208-240VAC
40A
Mechanical Specifications:
Chamber Volume:
28.68 cu.ft.
Weight:
800 lb

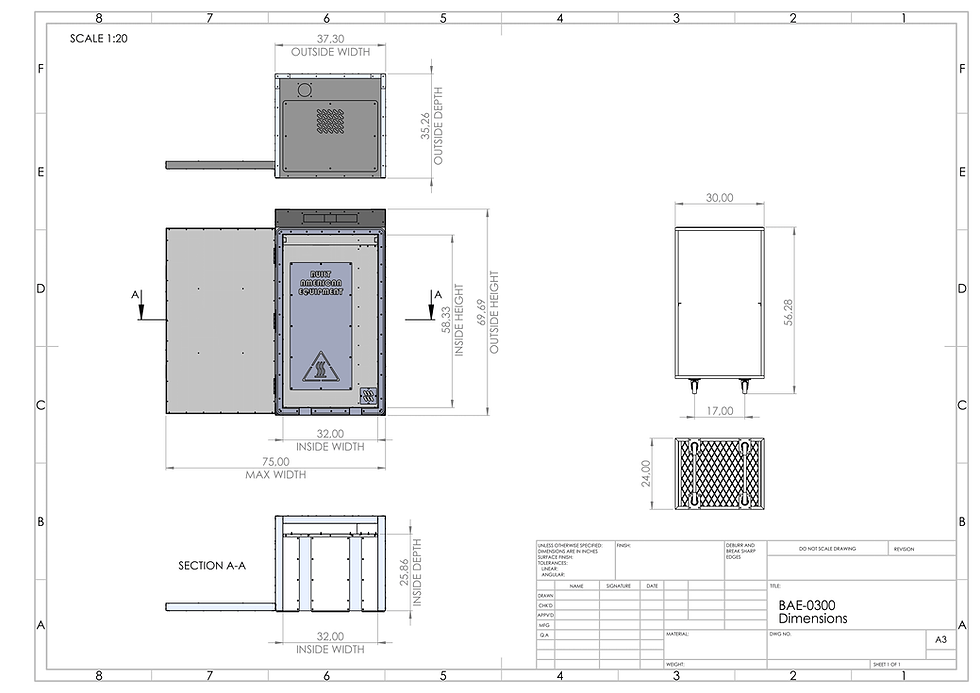

Interior Dimensions:
32” Length x 26” Depth x 58” Height
Exterior Dimensions:
37” Length x 35” Depth x 70” Height
The BAE-0300 Pro-Series Standup Cerakote Oven – Roller Cart is purpose-built for professional Cerakote applicators and high-performance coating environments. Engineered for precision temperature control and uniform heat distribution, this oven delivers consistent, repeatable curing results for ceramic-based coatings.
An integrated internal circulation system draws heated air from the top of the chamber, routes it through internal ductwork, and evenly redistributes it from the bottom to promote balanced heat coverage throughout the chamber.
The included roller cart system enhances workflow efficiency by allowing smooth part transfer and organized staging while maintaining proper airflow during the curing process. Built for durability, consistency, and production-ready performance, the BAE-0300 Pro-Series is designed to meet the demands of serious Cerakote operations.
